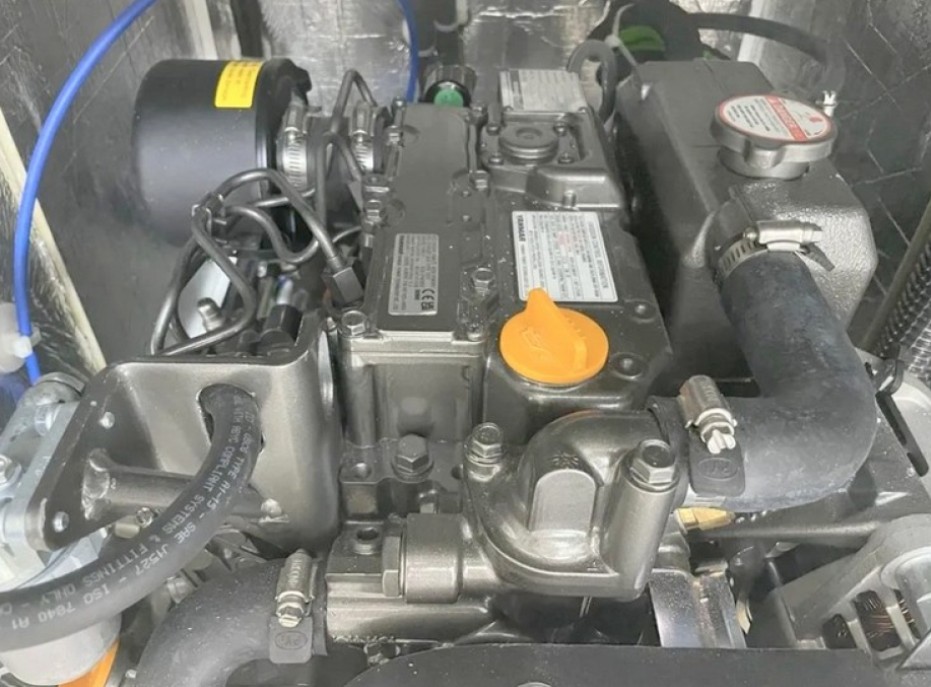

• Engine Yanmar 3YM30AE-C SD diesel inboard
• Engine serial no. E20154
• Cylinders / Power 3 cylinders / 29 hp (21.3 kW installed power)
• Propulsion Sail-drive; 2-blade folding propeller
• Fuel tank 60 L Vetus

• Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
• Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves



• White painted interior hull and deck surfaces

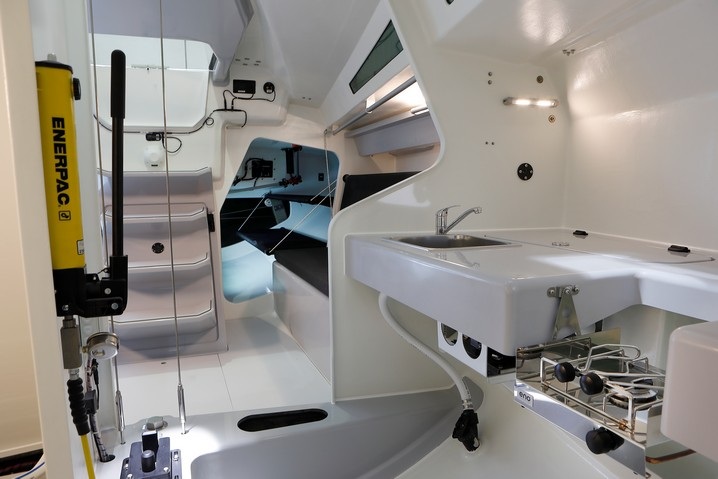

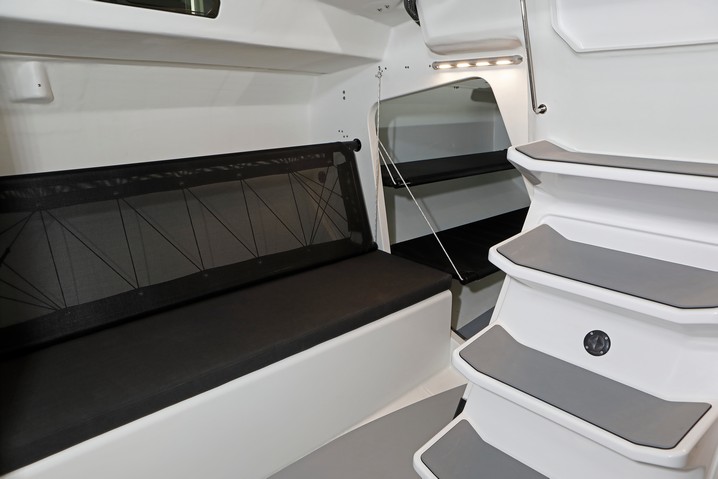

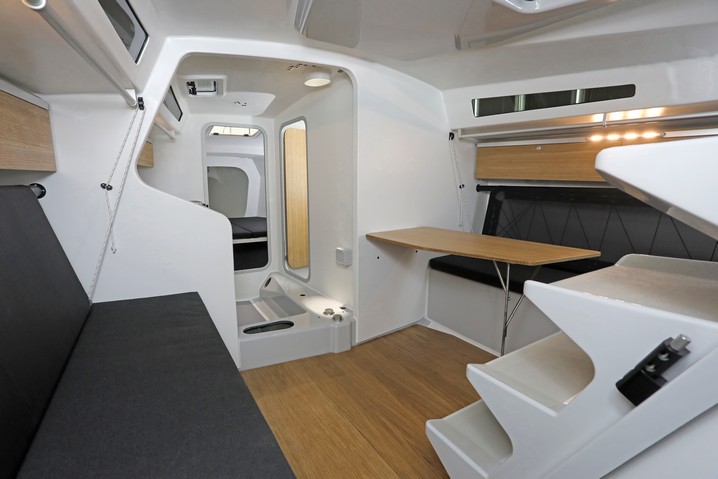

• High density foam cushions Central salon area with settees port & starboard Galley between mast and mast bulkhead, s/s sink, cooker, refrigerator compartment.

• Enclosed head to forward of mast bulkhead.

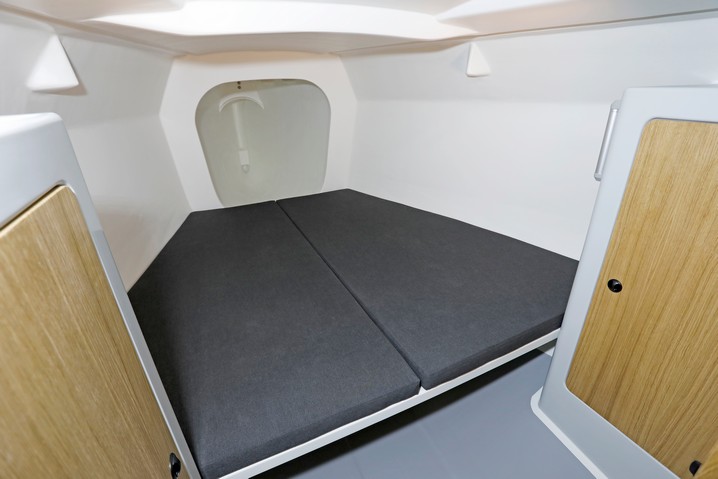

• Double berths port & starboard aft, portlights for naturel light and fresh air.
• 100 L Plastimo flexible fresh-water tank; Jabsco pressurised water system
• Stainless-steel hand basin and galley sink; pull-out shower mixer
• Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
• Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves

• Stainless-steel hand basin and galley sink; pull-out shower mixer
•  100 L Plastimo flexible fresh-water tank; Jabsco pressurised water system
• Stainless-steel hand basin and galley sink; pull-out shower mixer
• Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
• Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves


• B&G; H5000 CPU Performance; VMHU pack 810 mm
• 4 x H5000 Graphic displays on mast
• Triton 20/20 displays: cockpit x1, cabin x1
• DST800 speed and depth sensor; H5000 3D motion sensor
• ZG100 GPS antenna; Precision 9 compass
• V20 marine VHF radio
• 2 x Zeus3S 9" multifunction touch chartplotters on steering pedestals
• Zeus3S 12" multifunction touch chartplotter in cabin
• NAIS-500 Class B AIS with GPS-500 antenna
• Plastimo Contest 130 compass

Mechanical, Electrical & Water

• Victron Energy 50A battery charger; 12 V DC system; 60A engine alternator
• 1 x 110 Ah Victron Energy AGM house battery; 1 x 70 Ah starter battery
• BEP 12 V DC 8-way distribution panel with automatic circuit breakers
• Dimmable Frensch LED interior lighting
• 100 L Plastimo flexible fresh-water tank; Jabsco pressurised water system
• Stainless-steel hand basin and galley sink; pull-out shower mixer
• Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
• Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves

SAIL INVENTORY

• Square Top Mainsail — 3Di RAW 870, 16,800 DPI — 54.2 m²
• Pinhead Mainsail — OneSails Forte 225R — 49.76 m² — only used once
• J1-A HELIX Jib Light — 3Di RAW 870, 10,850 DPI — 39.2 m²
• J2-A HELIX Jib Medium — 3Di RAW 870, 14,700 DPI — 39.2 m²
• J3-A HELIX Jib Heavy — 3Di RAW 870, 16,800 DPI — 37.4 m²
• MH0-A HELIX MastHead Zero — NPL Code Xi TF1 Xi04/06 [Offshore] — 115 m²

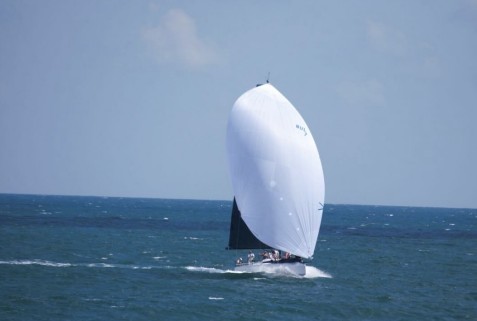

• A1-A Light Asymmetric — PowerKote PK66/55 CTDR — 162 m²
• A2-A Runner Asymmetric — PowerKote PK66/77 CTDR — 171 m²
• A4-A Heavy Runner Asymmetric — PowerKote PK99/88 CTDR — 167 m²
• A5-A Fractional Heavy Runner — PowerKote PK133 [Offshore] — 130 m²
• JS-A HELIX Jib Staysail — 3Di RAW 760, 8,820 DPI [Offshore] — 14 m²
• SS-A Spinnaker Staysail — NPL Code Xi Xi04 CD — 31.1 m²
• Storm Jib — Polyester High Visibility 10 oz — Storm Orange
• Storm Trysail — Polyester High Visibility 8 oz — Storm Orange

Rigging & Spars

• Axon carbon fibre mast and boom

• BSI rod rigging

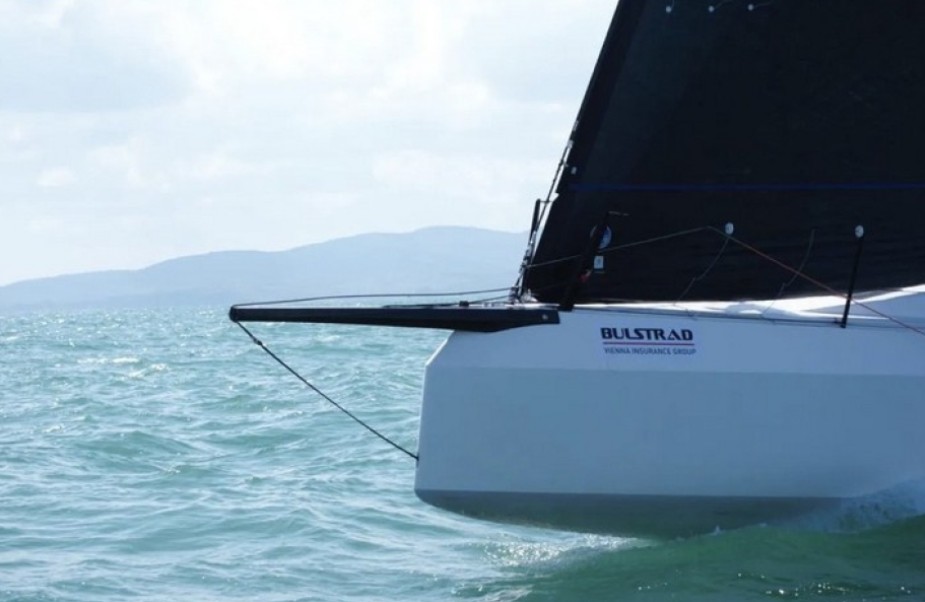

• Prepreg carbon autoclave-cured bowsprit

• 2 x masthead Kevlar 7T backstay tails to winches

• 2:1 main halyard; double masthead sheave box for spinnaker

• 2 x sheave box at headstay height for jib / genoa / solent

• Aluminium spreaders, carbon gooseneck and internal mast jack

IRC RATING & RIG

• IRC Certificate No.: 48758 — Standard Certificate (2024)
• Sail Number: BUL7
• IRC Design: MAT 1220 2.50 Fin6
• TCC: 1.155
• Non-Spinnaker TCC: 1.124
• Crew: 10
• Crew Weight: 850 kg
• LWP: 10.93 m
• DLR: 135

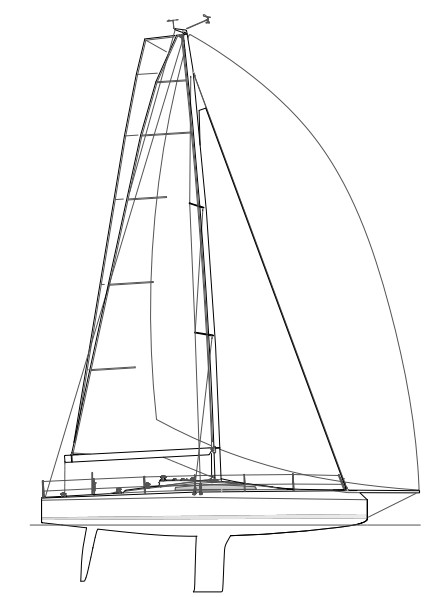

• Rig: Bermudian Sloop
• Mast: Carbon
• Standing Rigging: Rod
• Rig Factor: 1.017
• P: 15.36 m
• E: 5.26 m
• J: 4.79 m
• FL: 16.53 m
• STL: 7.01 m
• Rated Headsail Area: 38.96 m²
• Rated Spinnaker Area: 165.31 m²
• Maximum Headsails Carried: 3
• Flying Headsails: 0
• Maximum Spinnakers Carried: 3

Deck Hardware & Exterior

• Karver KF3.0 Furler V3 Standard PF300300 for MH0
• Karver KF1.5 Furler V3 Standard PF300150 for jib staysail
• Karver PF350000 0.9T furler for spinnaker staysail

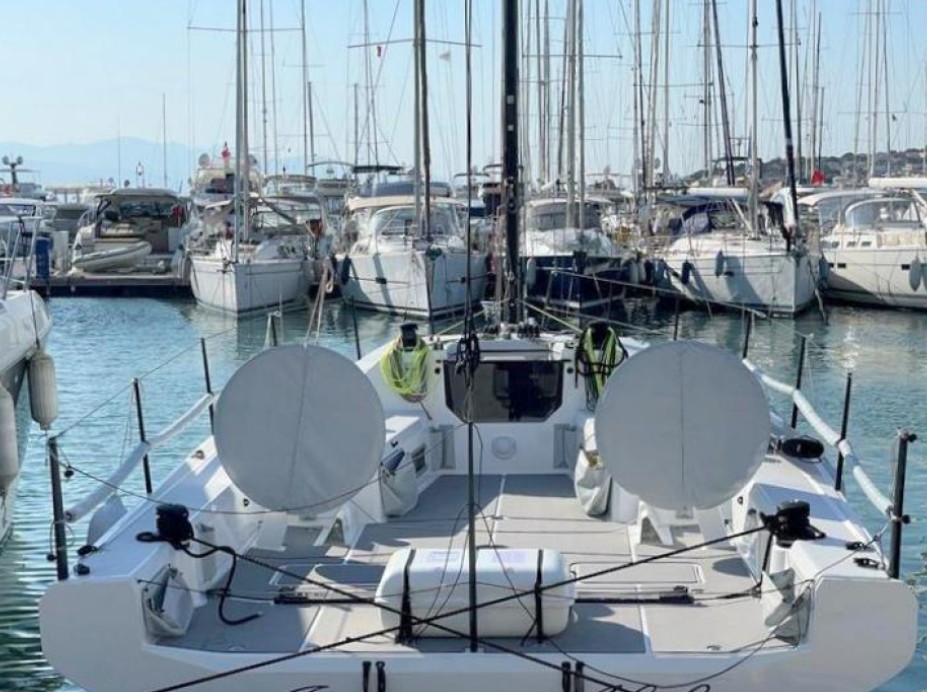

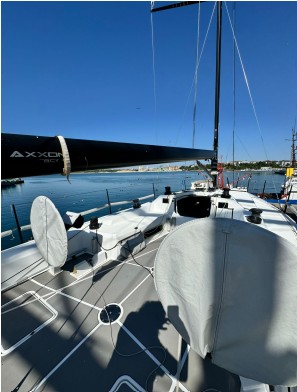

• Composite black stanchions, aero pushpit and pulpit

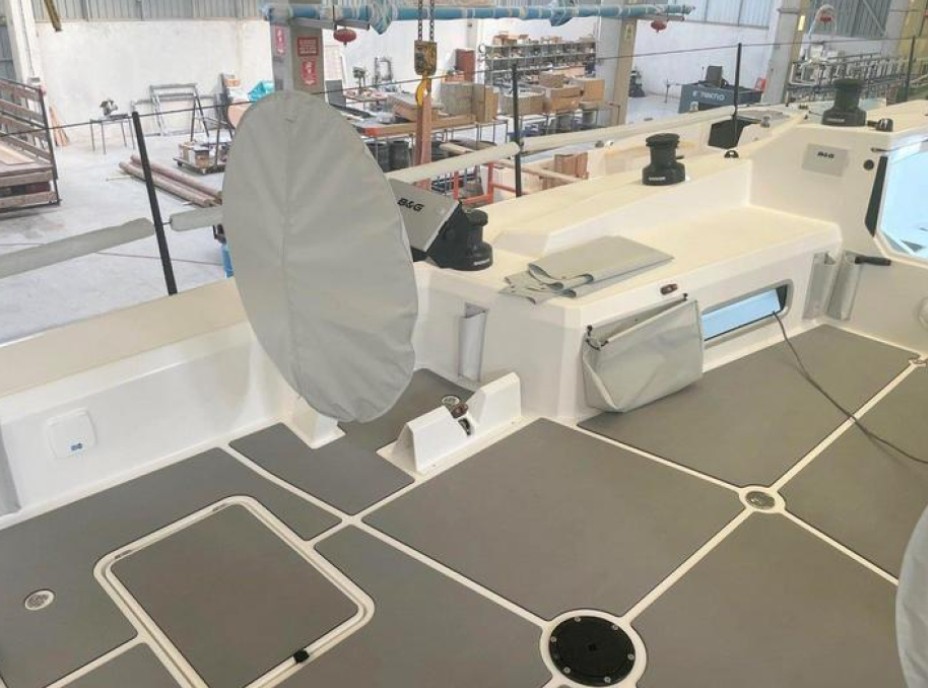

• Grey SeaDek non-skid soft cockpit covering
• 8 x Harken B10AL winch handles

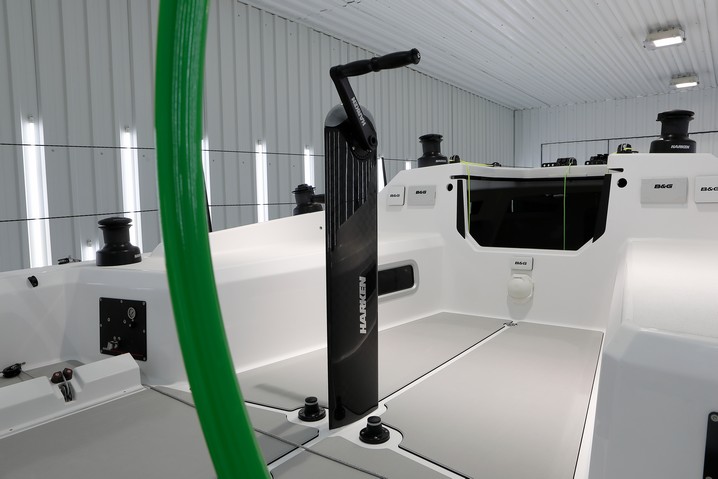

• 2 x Harken B46.2 STA self-tailing 2-speed primary winches
• 2 x Harken B40.2 STA self-tailing 2-speed mainsheet winches
• 2 x Harken B40.2 STA self-tailing 2-speed halyard winches
• Harken block and car package; transverse jib tracks; Spinlock XTS rope clutches
• Custom tempered-glass coachroof windows; 2 opening Lewmar cockpit portlights
• Large opening Vetus foredeck hatch and recessed companionway sliding hatch

• Lalizas ISO 9650-1 12-person canister liferaft
• Fortress Guardian G-16 aluminium emergency racing anchor, chain and line
• 2 x 2 kg fire extinguishers; fire blanket; radar reflector; first-aid kit
• Man-overboard rescue system; emergency ladder; safety lines and cockpit anchoring padeyes
• Mainsail cover, 2 steering wheel covers, 6 lifeline hiking pads, 8 winch-handle pockets and cockpit tidy bags

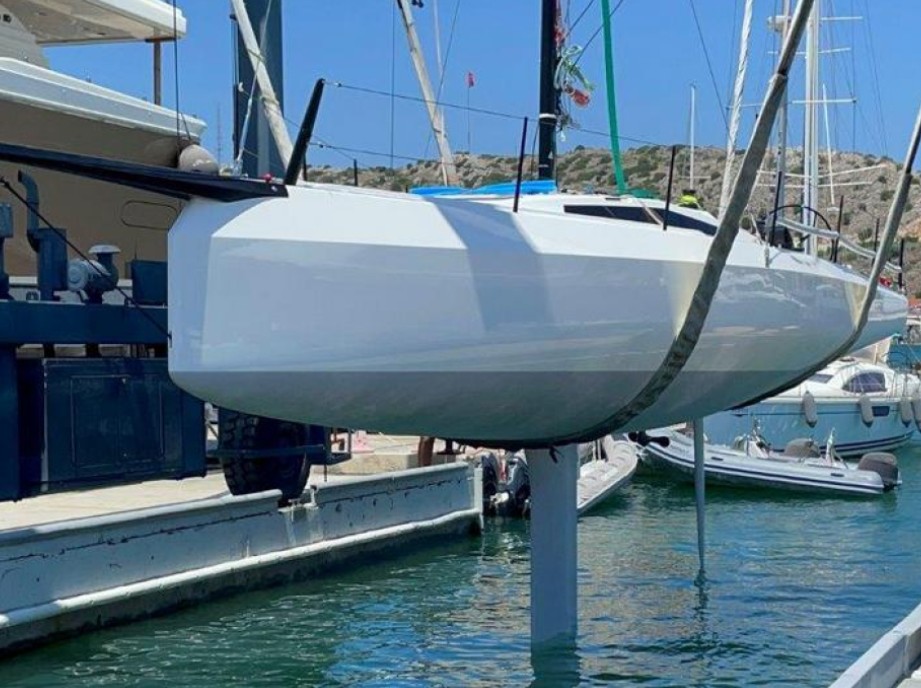

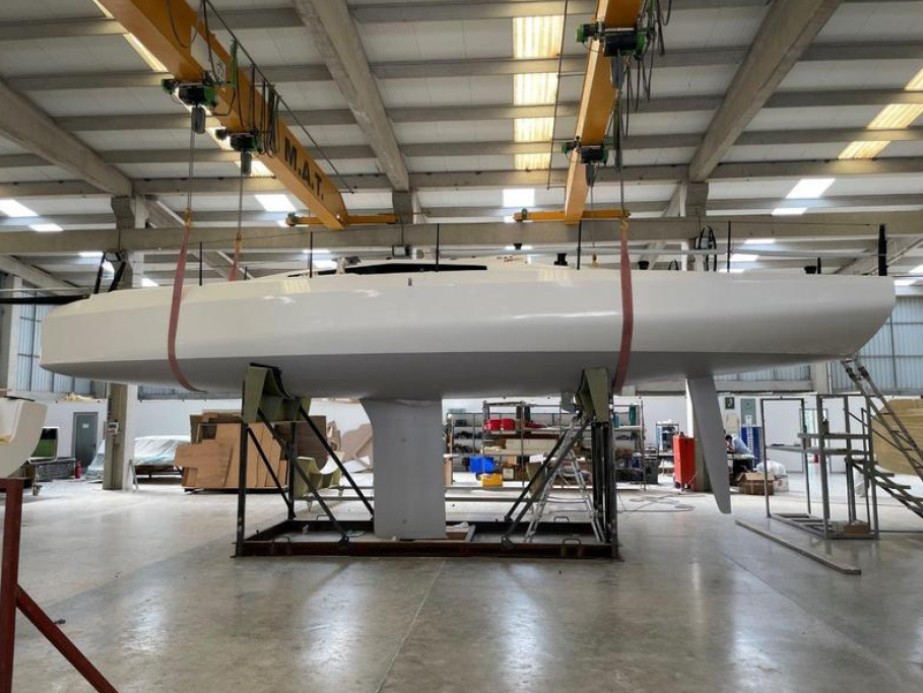

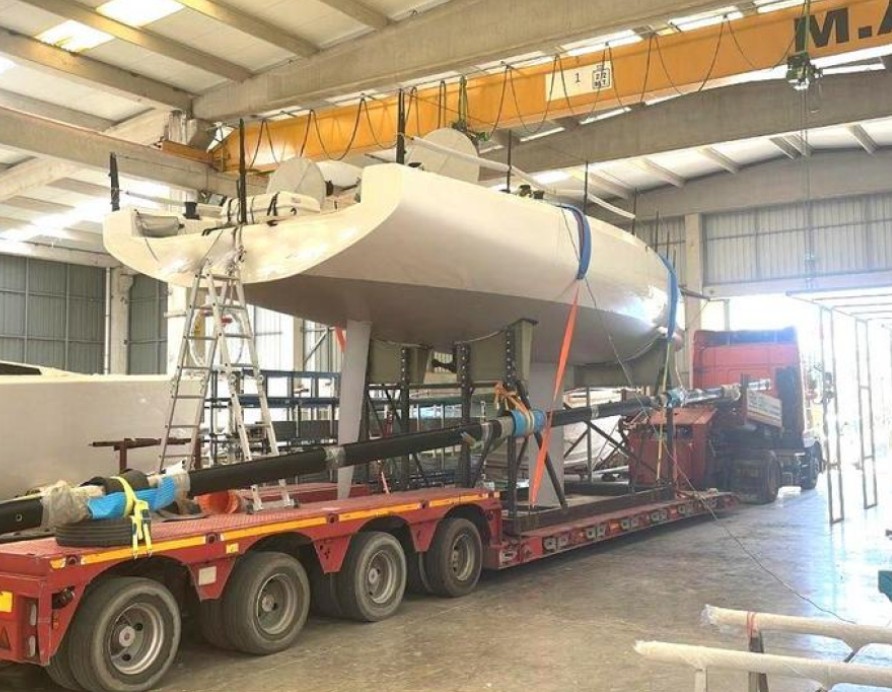

• Construction Rigid monohull, moulded fibre reinforced plastic
• CE design category Category A - 12 persons / max load 950 kg

Keel, Rudder & Steering

• 2 x steering wheels
• CCI Composites carbon fibre rudder stock and composite rudder
• Jefa high-performance self-aligning top / bottom rudder bearings
• Antimony-hardened lead fin keel - 2,400 kg
• Lead keel CNC machined to designed shape

ADDITIONAL EQUIPMENT

• 4 x Canvas Work Fenders
• 1 x Mainsail Cover
• 6 x Lifeline Pads for Hiking
• 8 x Winch Handle Pockets
• 2 x Cockpit Tidy Bags — Runner Tails, 50 × 20 cm
• 2 x Cockpit Tidy Bags — Sheets, 80 × 30 cm
• 1 x Spinnaker Drainer Mesh for Front Bulkhead
• 2 x Steering Wheel Covers
