GP 42 Seawonder 007

Engines
29 hp Yanmar with saildrive.
Propeller
Gori 420 Racing.
Engines notes
Control Spinlock atcu unit. Exhaust lightweight Vetus Waterlock with silencer.

Fuel
18 gal. PVC. l
Tanks notes
2 x Vetus 21 Gal. (Flexible) water tanks. Fresh water system with hand pumps in galley and head sinks. Bilge pump whale manual in cockpit. Composite sink. 2 x 13 Gal. Plastimo removable ice boxes. Standard RM69 type lightweight toilet. 4 x carbon bunks. Flush fit forespar. Manual pump located at sink.

Shower
Yes
Air conditioning
No
Heating
No
Accommodations notes

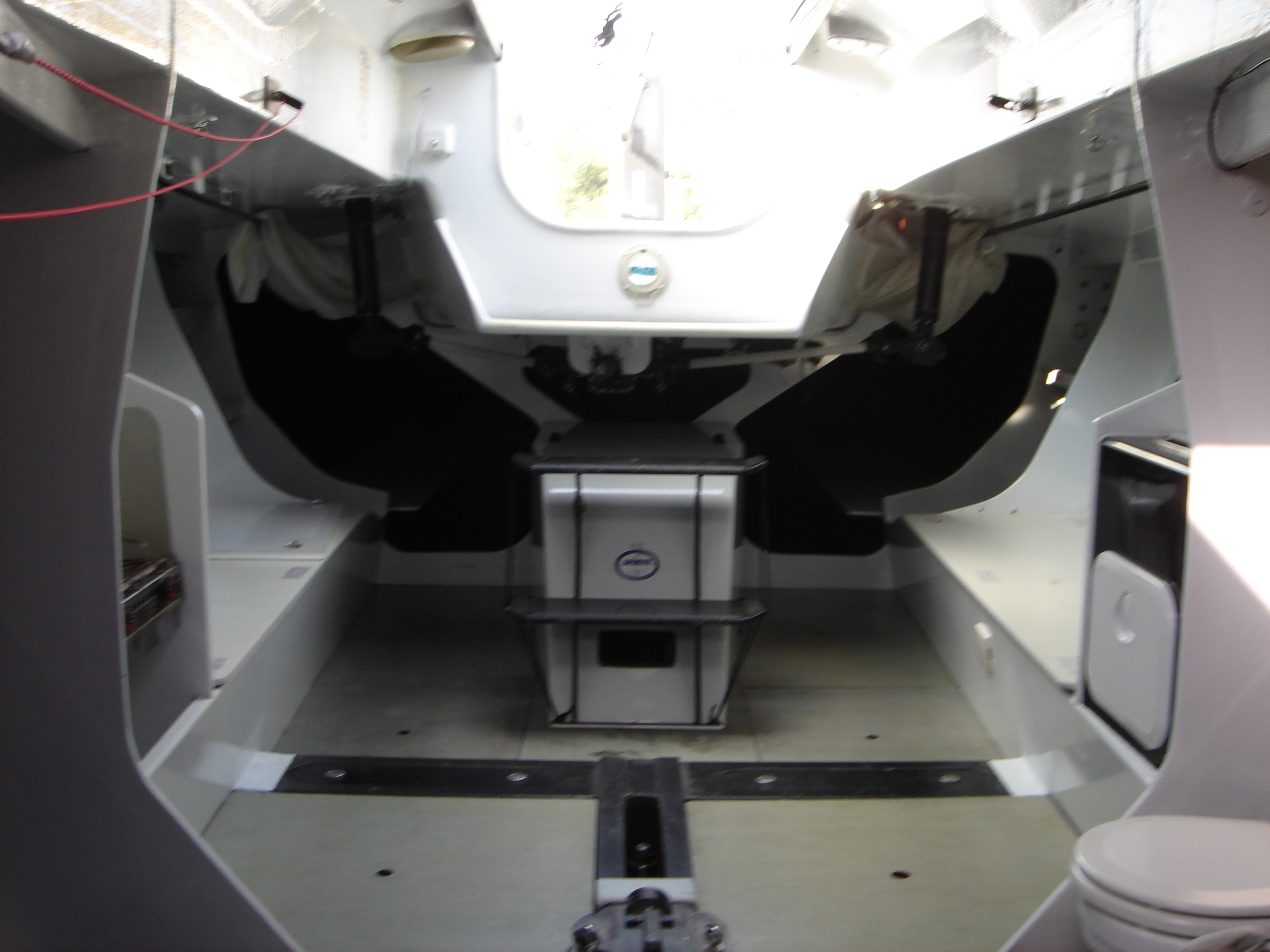

Interior layout is designed to meet the IMS cruiser/racer regulations as well as the ORC special regulations to category 2. Interior finishing will be clear-coated carbon with a choice of contrasting paint for webs, cabin sole, etc.

Hot water
No
Coolbox
No
Refrigerator
No
Water system
No
Galley notes
Galley area: Custom moulded unit with recessed sink with locker below. Stove: Custom 3 burner unit.

Electronics
B & G
GPS
Furuno GP 32
VHF
Simrad
Automatic pilot
No
Compass
No
Navigation instruments notes
B & G WTP2 electronics. 4 x 20/20 displays in the mast. 2 x FFD displays.

Battery charger
No
Electrical notes
Batteries: 1 X 75AH T-MAX + 1 X 125AH T-MAX (both sealed gel batteries connected via main battery switch). Alternator: 80AMP (engine mounted) Lighting: ORC approved navigation lights. White 9 Watt led lights for general illumination. Red 6 Watt led lights for navigation purposes. All internal led lighting will have no visible wiring. Custom 12 Volt DC distribution panel complete with breakers, switches, etc.

Sails
Rig dimensions: I: 16,20 m. J: 5,00 m. P: 16,80 m. E: 5,90 m. Sail area (provisory): Main: 65 sqm. Jib: 46 sqm. Gennaker: 180 sqm. 2014; 1 x Doyle Sails A2 - increased STL (190 sqm) 1 x Doyle Sails A4 - increased STL (190 sqm) 2012: - Zaoli A1 gennaker. - Zaoli light/medium jib. - Zaoli medium/heavy jib. 2011: - Zaoli light jib. - Zaoli A1,5 gennaker. - Zaoli square-top main. - Zaoli A0 gennaker. 2010: - Zaoli A2 gennaker. - Zaoli inshore main. - Zaoli code 0. 2009: - Zaoli inshore main. - Zaoli light jib. - Zaoli medium jib. 2008/2007 (GP42 rule): - 2 x One Sails inshore main. - 2 x #1 jib. - 2 x #2 jib. - 2 x #3 jib. - 1 x #4 jib. - 2 x A0 gennaker. - 2 x A1 gennaker. - 2 x A2 gennaker. - 1 x A3 gennaker. - 1 x spinnaker staysail.
Spars and rigging notes

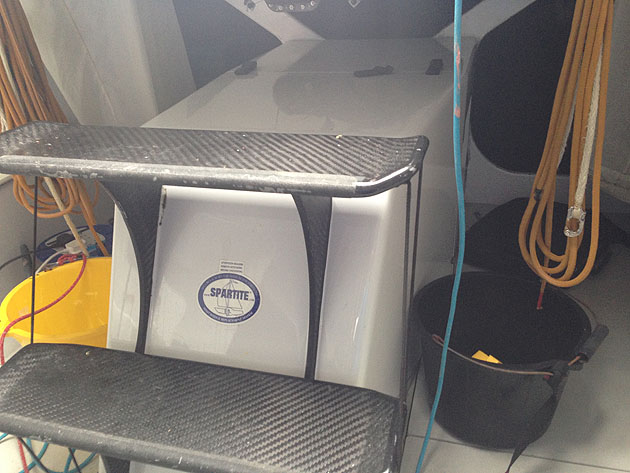

Full carbon rig by King Composite mast (Argentina). Mast: 2007 ORC 42 rule optimised with tapered topmast section. Two sets aft-swept spreaders. Spartite deck collar. Boom: full depth boom reinforced vang section, custom moulded gooseneck. Oouthaul 16:1 purchase. Spinnaker pole: tapered carbon fiber spinnaker pole with kevlar end patch (forespar outer-end, custom quick-fit inboard end). Jockey pole: 2 x custom carbon with molded outboard end. Standing rigging: rod rigging by Navtec series 800. Harken 7001 headfoil.

Construction notes
Keel weight: 2300 kg. Construction: hull, deck and internal structural members will be laminated using prepeg carbon over a pre-curved, post-cured Corecell T500 core in appliance with the GP rule. Steering system: Rudder: Isotop carbon blade and stock construction. Tiller: custom carbon tiller. Bearings: JP3 upper and lower self aligning bearings. Keel: Fin high strength 700 MPA steel assembled and machined. Internal keel box fitting with 2205 S/S locking bolts. Bulb: CNC milled antimonium-lead.
